Technology

AI Architecture

Ask AI

How CORRA AI and Corridor MCP work together, how the MCP server runs, and how requests access Corridor data.

Corridor’s AI capabilities are provided by CORRA AI, the assistant built into the platform, and Corridor MCP, the server that exposes Corridor capabilities as tools for agents. See CORRA AI for what the in-product assistant can do.

Components

CORRA AI, Corridor MCP, and the Corridor platform are separate components that can be deployed and used independently.

Corridor platform is the system of record. It owns users, workspaces, application data, files, and authorization. Its service layer remains the final enforcement point for workspace and object-level permissions.
Corridor MCP is the governed programmatic access layer over Corridor. It authenticates MCP requests, establishes the Corridor user/workspace context, and exposes selected Corridor capabilities as MCP tools. It can be used by CORRA AI or directly by external MCP clients.
CORRA AI is Corridor’s first-party agent experience. It provides the chat API and UI, conversation persistence, agent runtime, instructions, skills, LLM integration, and tool orchestration. Corridor MCP is one of the governed tool providers available to the agent.
External MCP clients such as Claude Code or Cursor can connect directly to Corridor MCP without using CORRA AI.

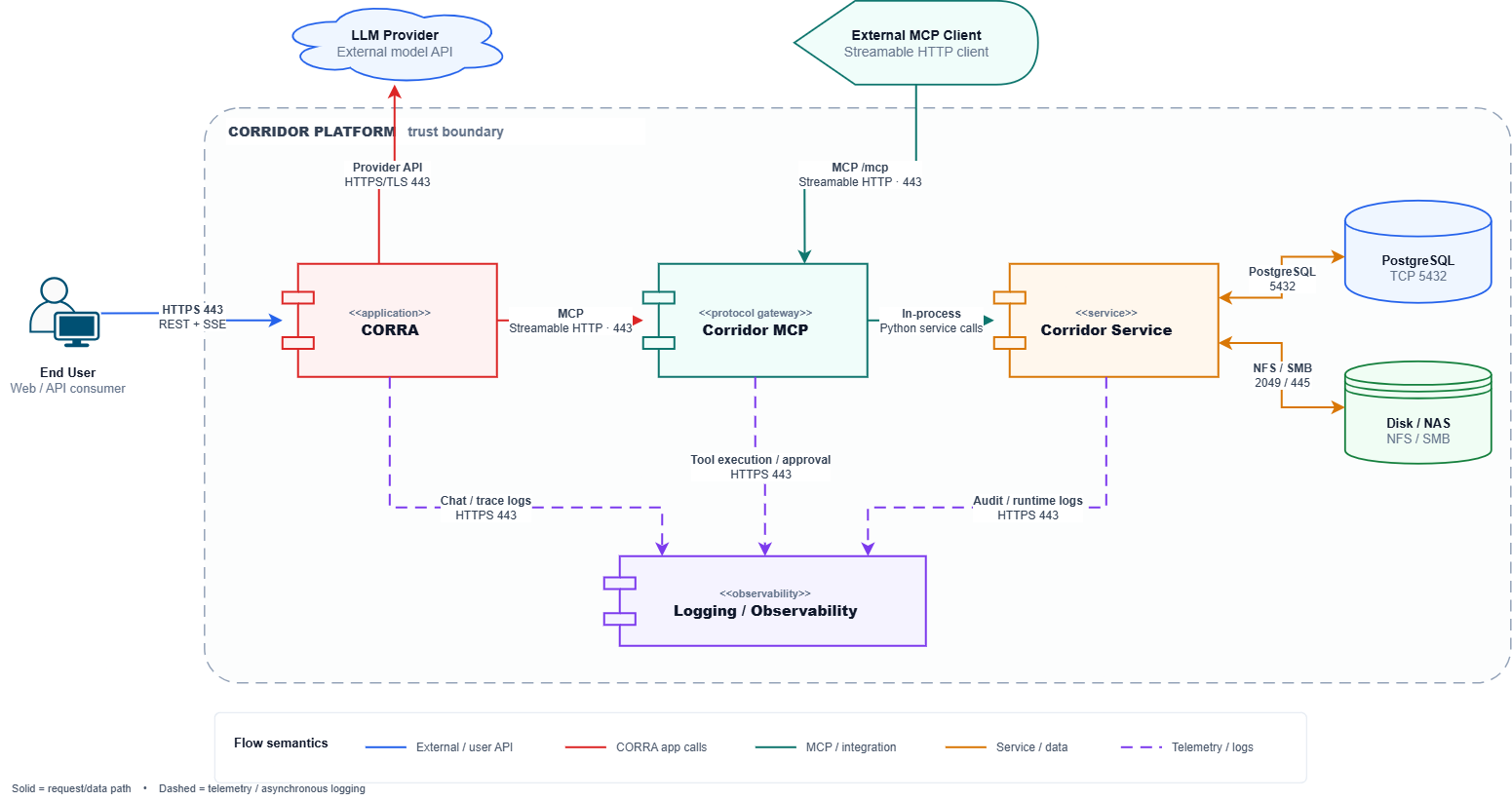

AI architecture diagram. Inside the Corridor Platform trust boundary, CORRA receives end-user requests over HTTPS and calls Corridor MCP over streamable HTTP, which reaches Corridor Service through in-process calls to PostgreSQL and disk or NAS storage. An external MCP client connects to Corridor MCP directly, CORRA calls the LLM provider over HTTPS, and all three components send telemetry to logging and observability. — How the components connect, with the protocols and ports used on each path.

Communication protocols and encryption

Connection	Protocol	Authentication / authorization	Security
Browser → Corridor	HTTPS; REST and Server-Sent Events for streamed responses	Existing Corridor session and authenticated user identity	TLS at the platform ingress
Corridor API → CORRA	HTTP/JSON and SSE within the server-side runtime environment	Scoped to the active Corridor user and workspace	Internal application communication
CORRA → Corridor MCP	MCP `streamable-http` at `/mcp`	Signed bearer token carrying user and workspace identity	Authenticated internal service communication
External MCP client → Corridor MCP	MCP `streamable-http` through the public reverse proxy	OAuth authorization flow and bearer access token	HTTPS
Corridor MCP → Corridor services	Direct in-process service calls	Authenticated `AppUser` context and standard Corridor authorization	No separate network hop
CORRA → LLM provider	Provider API	Provider-specific credentials	HTTPS/TLS
CORRA → observability platform	OpenTelemetry integration, for example Langfuse	Observability platform credentials	HTTPS in production deployments

The in-product CORRA runtime and external MCP clients ultimately use the same governed MCP tool implementations. For CORRA, the user and workspace context comes from the authenticated Corridor session established through the institution’s configured SSO/authentication mechanism and is carried into the signed MCP credential. External clients establish their identity separately through the MCP OAuth authorization flow.

Corridor App server starts the MCP server and keeps it running alongside the application. This means the server stays warm between requests rather than starting a new process for every tool call. See Installing Corridor MCP for how an agent connects and obtains a token.

MCP token security

MCP access tokens are signed JWTs containing the authenticated Corridor user, workspace, client identity, issue time, expiry time, and token type.

The MCP server validates the token signature, expiry, and token type before accepting the identity contained in the token.

Credential lifetimes are deliberately bounded:

Credential	Lifetime
OAuth login ticket	5 minutes
Authorization code	60 seconds
MCP access token	12 hours
Dynamically registered MCP client	90 days

Access tokens are signed using HS256 with the Corridor deployment secret. Different token types are independently validated so that credentials issued for one stage of the authorization process cannot be used as another credential type.

Refresh tokens are not issued. External clients reauthenticate after access-token expiration.

Non-loopback OAuth redirect URLs must be explicitly authorized and use HTTPS. Loopback callbacks used by local desktop and developer tooling may use HTTP because the callback remains on the user’s machine.

Secrets at rest

Sensitive LLM configuration and observability credentials stored in platform settings are protected using Fernet authenticated encryption.

The encryption key is derived from the Corridor deployment secret using PBKDF2-HMAC-SHA-256.

Sensitive configuration values returned through platform settings interfaces are represented using masked values rather than exposing the stored secret.

MCP dynamic-client metadata is persisted with restricted file permissions so registered client configuration remains protected while surviving application restarts.

Reading Corridor data

Results are returned as structured data. For stored files, MCP uses the attachment ID and reads the file in pages so that a tool only retrieves the content it needs.

Access to that data is governed by the user’s existing Corridor permissions. See Input and Output Guardrails.

In this section

Bringing Your Own LLM: configure LLM providers and credentials
Installing Corridor MCP: connect an agent and host the MCP endpoint
What Corridor MCP Can Do: available capabilities and limitations
Input and Output Guardrails: how access is controlled and how the model’s inputs and actions are constrained
Observability and Traceability: logs, conversation records, and model telemetry
