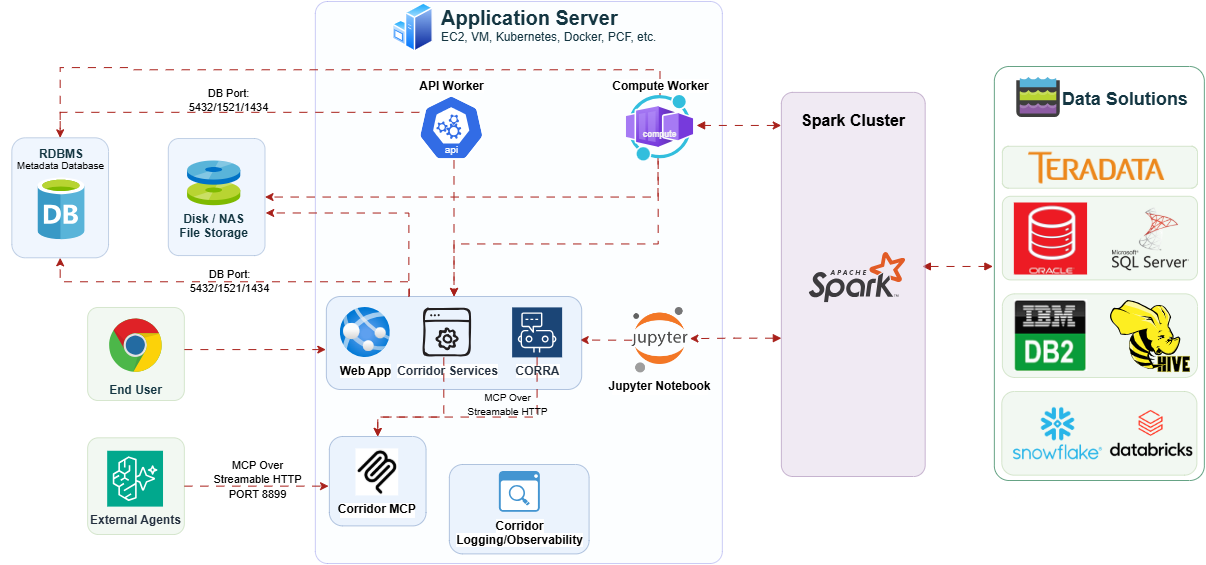

How Corridor components interact with each other, with a network topology diagram and a request sequence diagram.
This page describes how the components interact with each other.
From Web Application Server and API - Celery Worker:
- To File Management: for file read/write operations
- To Metadata Database: for metadata read/write operations
From Spark - Celery worker:
- To submit Spark Jobs: to submit Spark jobs based on the task queue
From Jupyter Notebook:
- To API: for metadata access
- To Web Application: for authentication (if internal authentication is used)
- To submit Spark Jobs: to submit Spark jobs based on the task queue
From External Agents:
- To Corridor MCP: over MCP streamable HTTP on port 8899, for tool access to Corridor
Sequence Diagram
Section titled “Sequence Diagram”The interaction flow between the different components can be better understood with the sequence diagram below.
